Thus the inductive spike is limited to the forward voltage drop of the diode. In this circuit the diode is placed in parallel with the coil such that it will be reverse biased when dc voltage is applied to the coil through the switch.

Presents Three Switching Blocks Formed By Either Two

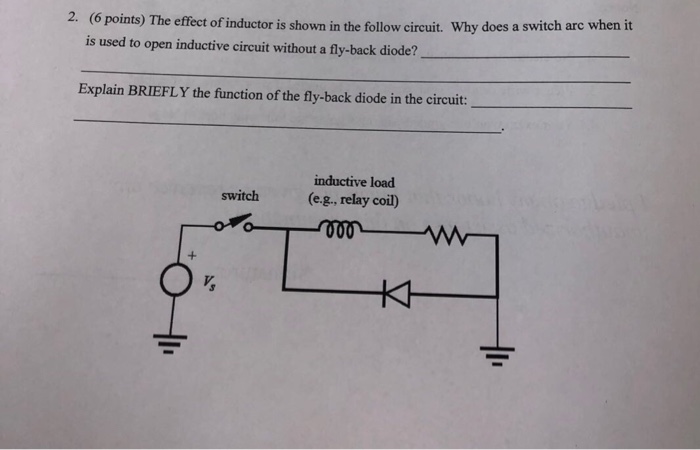

Solved 6 Points The Effect Of Inductor Is Shown In The

Inductor Minimum Specs Before A Flyback Diode Is Needed

If you draw a diagram of the current flow both before and after the switch is opened you will see how the diode prevents a large voltage spike.

Inductor in parallel with diode. The diode is the equivalent i have found for a nonlinear term in my mechanical system with a behaviour in so an approximately equivalent the schematic with an ideal diode far from breakdown would be. C switch open inductive kickback is shorted by diode. Again remember that the definitive measure of inductance is the amount of voltage dropped across an inductor for a given rate of current change through it.

How to calculate parallel diode. By tying the collector to the base it will in effect be two diodes in parallel. Whenever an inductor based load is involved in a dc circuit incorporating a back emf protection diode or a freewheeling diode becomes imperative in order to protect the bjt or the mosfet responsible for driving it.

A resistor in series with the diode can make the relay fall off faster. For inductors in parallel the equivalent circuit inductance lt is calculated differently. Thus when the coil is energized the diode conducts no current in the figure above b.

Inductors are said to be connected in parallel when two terminals of an inductor respectively connected to each terminal of other inductors or inductor. Similar to the parallel connection of resistors the total inductance in parallel connection of inductors is somewhat lesser than smallest inductance of an inductor in that connection. The parallel diode provides an alternate path for the inductive current until the stored inductor energy is dissipated.

The voltage drop across all of the inductors in parallel will be the same. Inductors are said to be connected together in parallel when both of their terminals are respectively connected to each terminal of the other inductor or inductors. The sum of the individual currents flowing through each inductor can be found using kirchoffs current law kcl where it i1 i2 i3 and we know from the previous tutorials on inductance that the self induced emf.

A diode parallel to the coil is probably the most often used way but there are other ways like a snubber rc or a zener diode to ground. In a linear power supply there is a capacitor in parallel with an inductor in series and often in a pi filter. However calculating and connecting diodes in parallel is never an easy task to implement.

When inductors are connected in parallel the total inductance is less than any one of the parallel inductors inductances. It consists of a current source and a diode inductance in series in parallel with this source.
